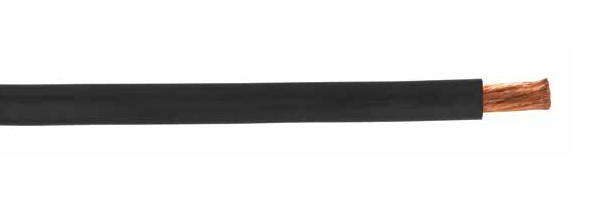

Super Vu-Tron® Welding Cable

90ºC 600 Volt UL /CSA RHH/RHW

Product Construction

Conductors

  • 6 AWG. through 4/0 AWG. fully annealed stranded bare copper per. ASTM B-172 Class M

Jacket

  • Super Vu-Tron®, Orange
  • Temperature Range: -50ºC to +90ºC

Insulation

jacket Marking

  • #6 – #1 AWG.: CAROL SUPER VU-TRON
    WELDING CABLE–EXTRA FLEXIBLE (UL) 600
    VOLT (-50 to +90C) OIL RESISTANT
    P-123-141 MSHA (SIZE) — CSA 90C ARC
    WELDING CABLE FT-1
  • 1/0 – 4/0 AWG.: CAROL SUPER VU-TRON
    WELDING CABLE (SIZE) EXTRA FLEXIBLE
    (UL) 600 VOLT (-50 to +90C) OIL RESISTANT
    P-123-141 MSHA — CSA 90C ARC WELDING
    CABLE FT-1 — TYPE RHH OR RHW (UL)
    600V FOR CT USE

Features

  • UL Listed
  • CSA Certified
  • Excellent flexibility to last longer in flex applications
  • Abrasion-resistant
  • Resists oils and solvents
  • Rated -50ºC for use in cold environments
  • Weather-resistant
  • Ozone-resistant
  • Safety-coloured for high visibility
  • Assured longer service life, saving money in replacement costs, maintenance cost and downtime
  • MSHA approved for flame resistance

Industry Approvals

CSA Certified, Meets UL Vertical Flame Test per UL 854, MSHA Approved, RoHS Compliant, UL Listed

Applications

  • Secondary voltage resistance welding leads
  • Power supply applications not exceeding 600 Volt AC
  • Sizes 1/0 and larger for permanent wiring in conduit or tray of 600V power supplies, hoists, cranes or other applications where flexible power leads must be installed in conduit, raceways or trays

Packaging

  • 250′ (76 m), 500′ (152 m), and 1000′ (305 m) reels
  • Other put-ups available on special order
